Manual flocking units

Manual flocking units
  • Hand Flocking Unit, Type ET-100/F
  • Manual printing carousel type TEXWORK 4-6
  • Dryer for hurdle carriages TRUS 160 KT
  • Cleaning Unit TS-R

Technical Data

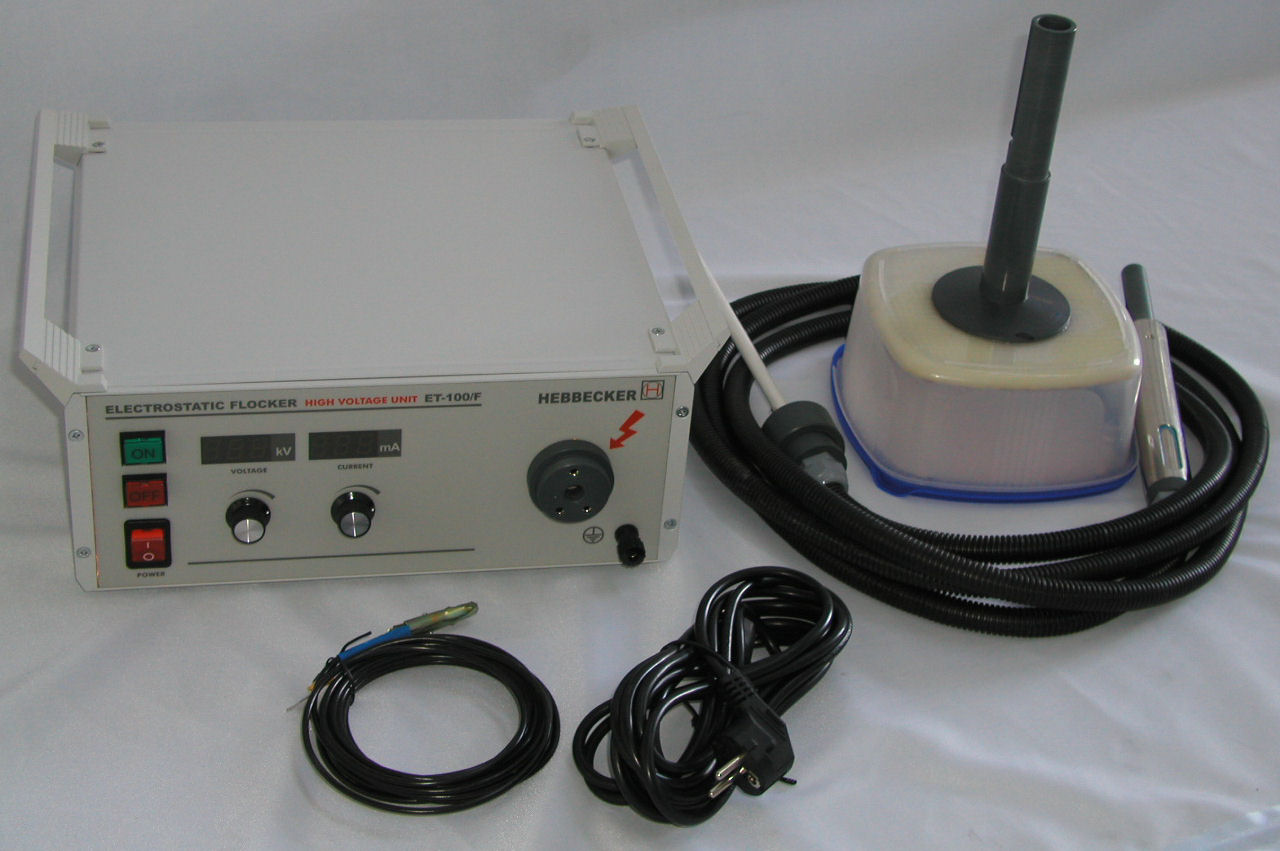

Hand Flocking Unit, Type ET-100/F

consisting of:

  • 1 pce. HV-generator
  • power supply 230 V, 50 Hz
  • high voltage from 10 - 80 kV stabilized
  • with ground surveillance
  • digital kV- and µA-measuring meter
  • automatic high voltage discharge
  • 1 high voltage cable HTC
  • approx. 4 m long, with grounded handle and remote control (sensor)
  • adjustable safety overcurrent switch
  • 1 ground cable
  • 3 applicators Type M
  • size 160 x 160 mm with fine mesh

Manual printing carousel type TEXWORK 4-6

With micro-screen-fineadjustment and 6 turnable screenholder, max. screensize 51x75 cm, 4 turnable pallets 40 x 60 cm with neck.

Dryer for hurdle carriages TRUS 160 KT

For an operating temperature up to 160° C. For drying and fixing of flocked textiles.

measurements of the drier:

  • internal: 1.250 mm wide / 850 mm long / 1.600 mm high
  • external: 1.600 mm wide + 250 mm for control box / 1.100 mm long
    2.100 mm high + 250 mm for motor
  • voltage: 3x380/400 Volt
  • heating capacity 19,5 kW

Cleaning Unit TS-R

For rapid cleaning of excess flock from flocked T-shirts. The flocked articles are vacuumed, shaken and brushed in one single operation

The unit mainly includes:

  • closed vacuum chamber with suction fan
  • with capacity 1,5 kW, 380 V, 50 cycles
  • strip brushes at the opening
  • exhaust air filter bag with rapid-tension ring
  • fixture for PE collecting bags including rapid-tension ring

Pictures

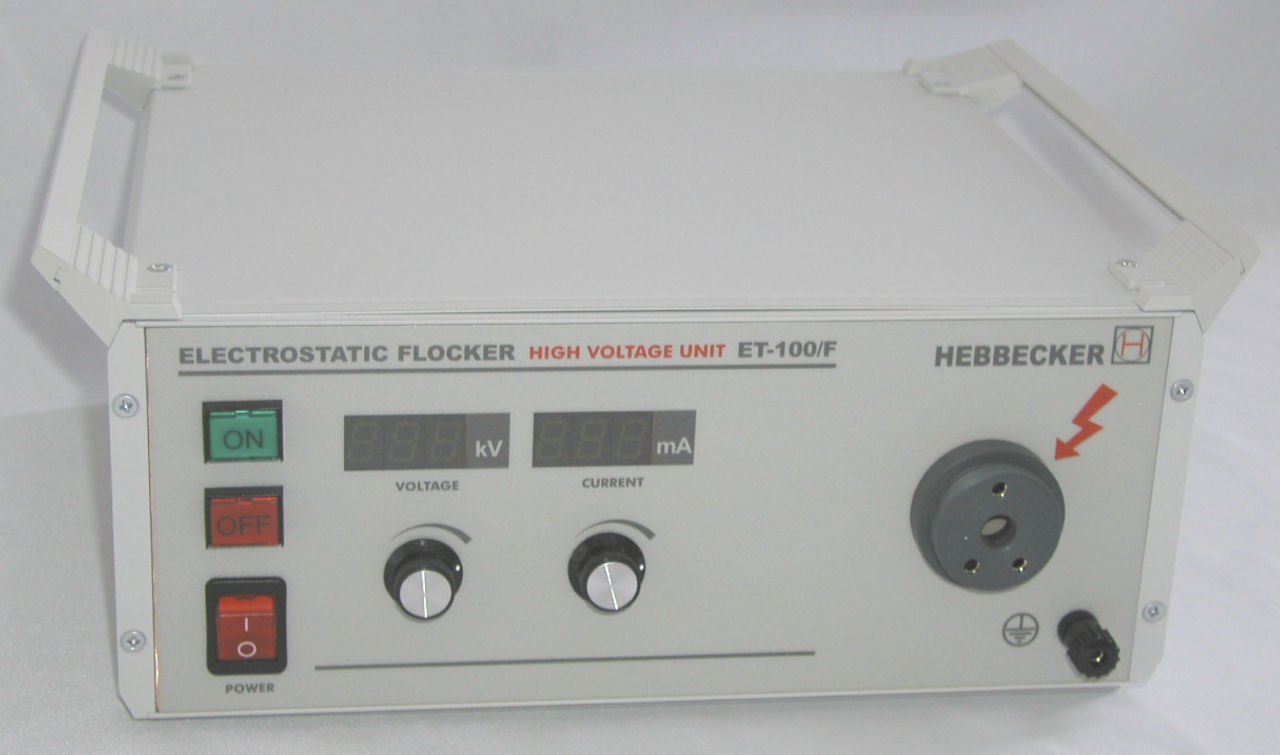

Hand flocking unit ET-100/F Hand flocking unit ET-100/F without accesories

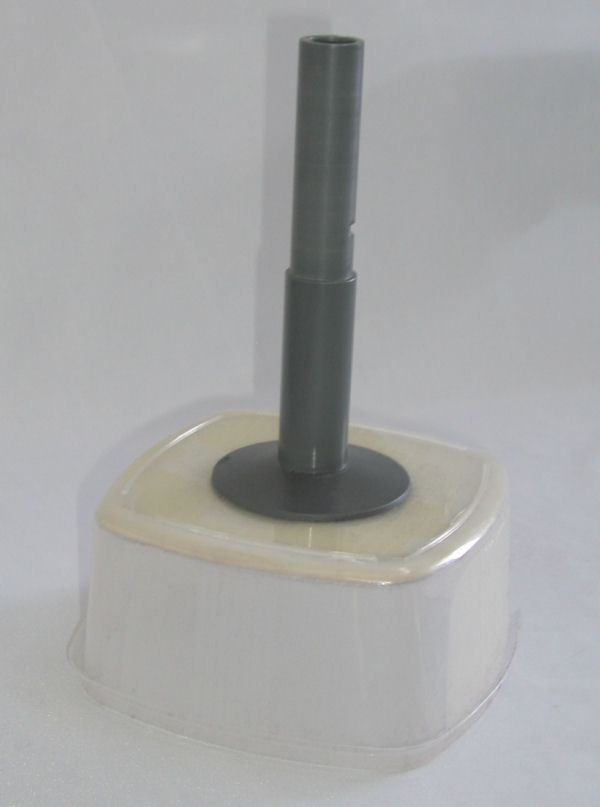

Applicator without mesh Applicator without mesh for hand flocking unit ET100/F.

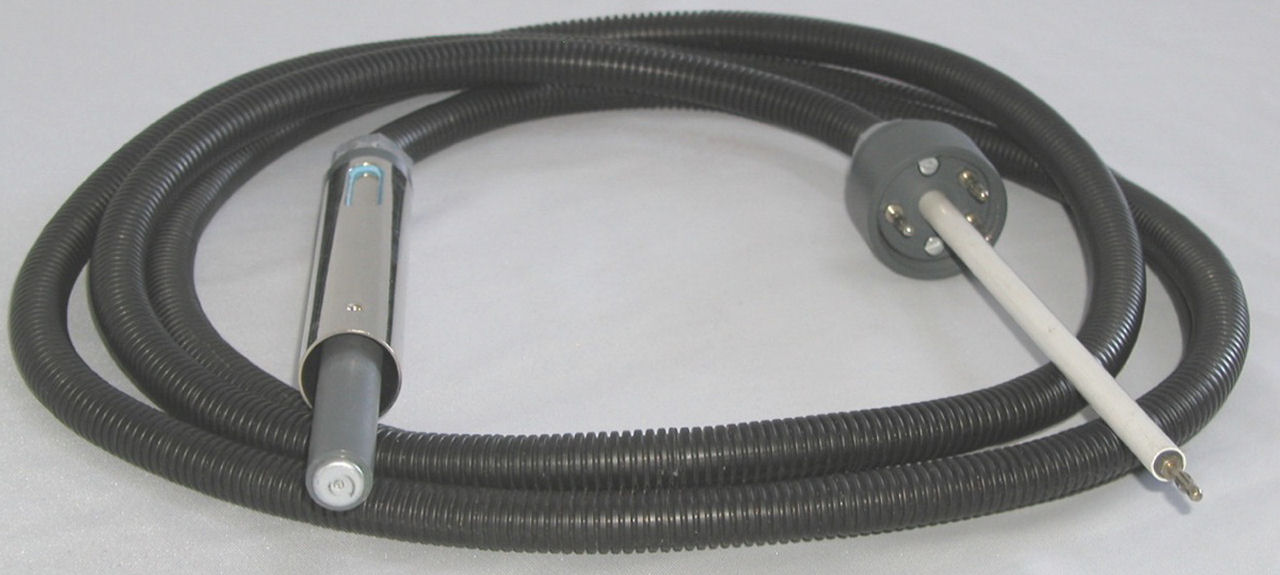

HS cable HS cable for handflock-unit; 4m length

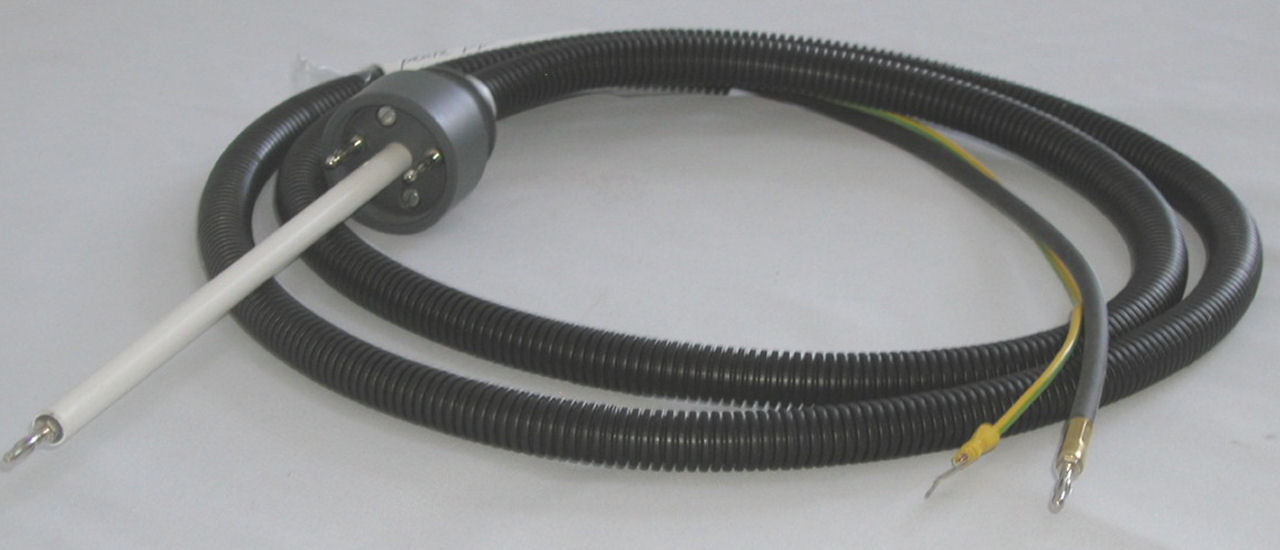

HS cable HS cable for machine installation; 2.3m length

Downloads

  • ET-100/F Flyer
    Download our flyer with useful information about our manual flocking unit ET-100/F (PDF file; 73 KB)
  • ET-100/F Set
    See the ET-100/F together with the available applicators and meshes (PDF file; 458 KB)
  • About the flocking process
    Get more information about the flocking process in detail (PDF file; 299 KB)
